Automatic Bag Emptying Station

An Automatic Bag Emptying System is self-contained equipment used to slit, empty, and dispose of bulk bags (usually 25–50 kg) in a dust-freeefficient, and continuous manner. It eliminates manual intervention and reduces labor cost and contamination.

In Automatic Bag Emptying system operates the roller conveyor line, the entire stack will be automatically conveyed into the catching position of bag slitter, the catching device of the bag slitter will come down to grab the whole layer bags layer by layer, and raise up to the set position, then move inside the machine, during this process the cutter blade will cut open the bags from the bottom, material emptying device to empty the material inside the bag, the material by gravity fall into the hopper, empty bag into the waste bag compactor, which collect, compact and extrude out the waste bag.

When the whole stack bag is unpacked, the roller conveyor line will automatically transport the empty pallet to the pallet collector to complete automatic collection and stacking of the empty pallet.

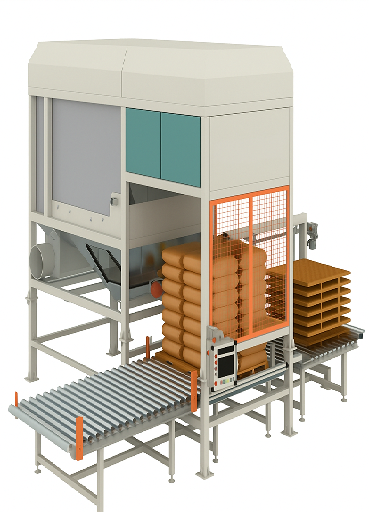

Automatic Bag Emptying System



No

Part Name

Description

1

Stack  conveyor

Convey the stacked bags into the machine of bag slitter

2

Layer bag slitter

Cut open bag, separate the material and the bag

3

Pallet Palletizer

Collect and pile up de pallets

4

Empty bag compactor

Automatic collection, compaction of the   empty bags

5

Hopper

Material outlet

Technical Specifications :-

MODEL

PC-ABES-25-50

Processing Capacity

Up to 600–900 bags/hour (depends on material fluidity, etc)

Bag Weight

10 – 25kg

Material handled

Powder, Granules, Flakes

Applicable stack specifications

Length ≤1350MM, Width ≤1300MM, Height ≤2200MM (including pallet)

Cutting Mechanism

Rotary Blades

Emptying rate

About 99.97%-99.999% (depending on material fluidity, etc.)

Overall power

About 12KW

Compressed air

About 150L/ min / 0.6mpa

Weight of equipment

About 4 tons

Technical characteristic:-

High integration

The equipment integrates the functions of automatic stack feeding, bag catching, bag emptying, pallets collection and collection & compaction of empty bags.

Intelligent control

PLC built-in program, one click-start, unpacking speed adjustable, automatic fault alarm.

High emptying rate

Above 99.97% – 99.999% high emptying rate, close to 0. material left in empty bag.

Easy maintenance

The equipment is equipped with access doors to facilitate the maintenance of various components outside the equipment.

No bag debris

Through special design, less bag debris generated during the cutting process, equipped with dust filter box, almost 0 dust into the material
