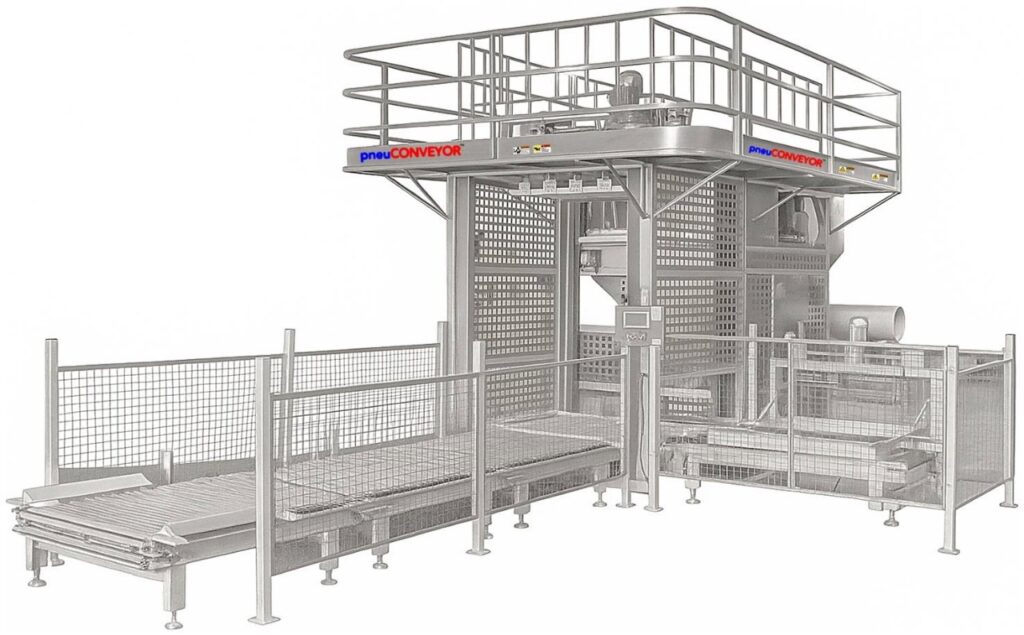

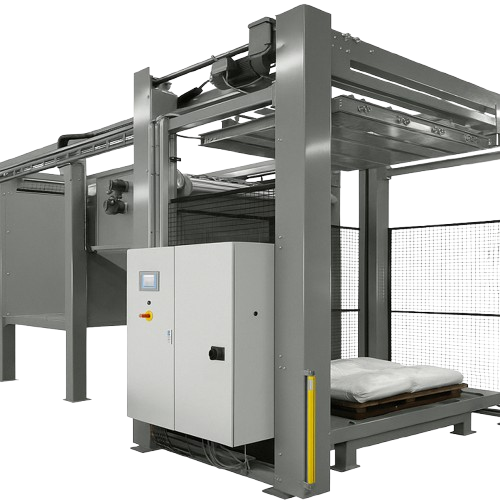

AUTOMATIC BAG EMPTYING SYSTEM

A Fully Automatic Sack Emptying Station is designed for dust-free, high-capacity unloading of powder and granular materials from 25–50 kg sacks without manual intervention. It ensures consistent throughput, worker safety, and compliance with hygiene standards, making it ideal for pharmaceutical, chemical, food, and plastic processing industries.

Bag Sack Emptying System - Brochure Download

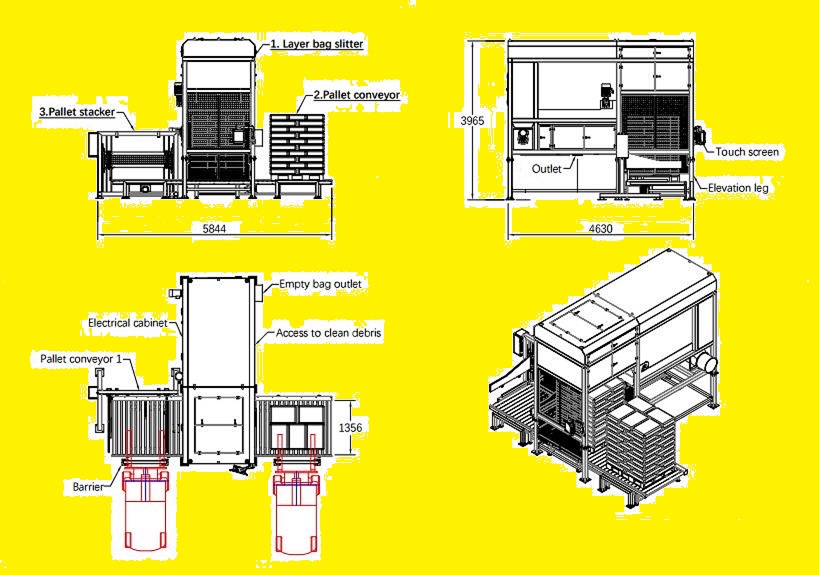

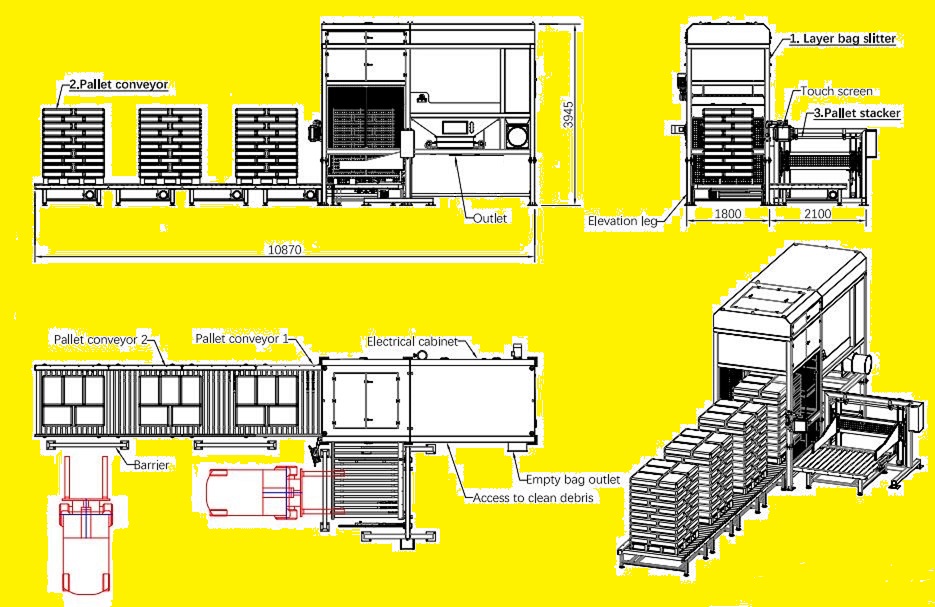

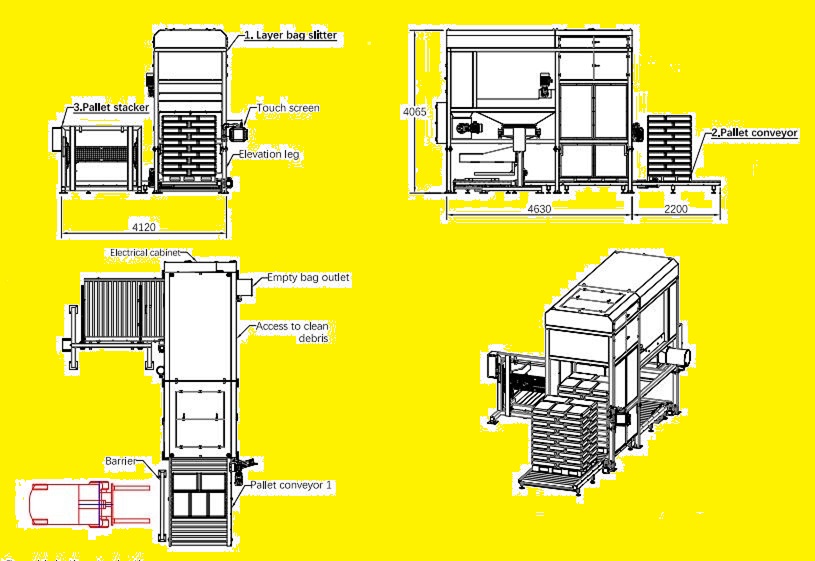

In Automatic Bag Emptying system operates the roller conveyor line, the entire stack will be automatically conveyed into the catching position of bag slitter, the catching device of the bag slitter will come down to grab the whole layer bags layer by layer, and raise up to the set position, then move inside the machine, during this process the cutter blade will cut open the bags from the bottom, material emptying device to empty the material inside the bag, the material by gravity fall into the hopper, empty bag into the waste bag compactor, which collect, compact and extrude out the waste bag. When the whole stack bag is unpacked, the roller conveyor line will automatically transport the empty pallet to the pallet collector to complete automatic collection and stacking of the empty pallet.

Working Process:-

Sack Loading – Bags are placed on an infeed conveyor manually or via a pallet loader.
Automatic Bag Cutting – Rotary or guillotine blades cut open the sack in a controlled enclosed chamber.
Material Discharge – Contents fall into the receiving hopper, equipped with vibration or screw feeding for continuous downstream conveying.
Empty Bag Separation – Automatic removal of empty sacks via a discharge conveyor into a compactor or waste bin.
Dust Control – Integrated dust extraction ports ensure clean and safe operation.
Continuous Feeding – Material is directly fed into the process line via pneumatic, screw, or belt conveying.

Working Principle:-

Capacity: Up to 20–30 sacks/min (varies with bag size & product type)

Bag Size Range: 25–50 kg standard

Automatic Blade Cleaning System to prevent clogging

Stainless Steel Construction (SS304 / SS316L) for GMP environments

Enclosed Dust-Tight Design with HEPA filtration option

Integrated Empty Sack Compactor

PLC-based Control Panel with HMI touchscreen interface

Safety Interlocks & Emergency Stops

Low Maintenance, Long Service Life

TECHNICAL SPECIFICATIONS:-
MODEL PC-ABES 25-50
Efficiency up to 15-20 t/h
Capacity 600-900 bags/hour (depending on fluidity of material)
Bag handled Cap 25 – 50 kg Bag
Material handled Powder, Granules, Flakes
Cutting Mechanism Rotary Blades
Accuracy of emptying bags Up to 99.98%
Machine dimensions 3600mm x 5400mm x 3300mm (W x L x H)
Pallet dimensions 1300 mm x 1100 mm
Pallet weight max. 1600 kg
Pallet height max. 2200 mm
Power supply 3 x 415 V, 50 Hz
Compressed air consumption 15 l/cycle, 8 bar
Power up to 11 kW
Weight of equipment about 3.5 tons

Possibility of configuring the granulate discharge location – in stainless steel version
Possibility to configure the method of managing empty bags
IP55 protection class

Suitable Bag type :-

Advantages:-

Sanitary design, mirror polished inside the feeding bin body, with excessive rounded corners and no cleaning dead corners.
Breaking and feeding are carried out in a closed, slightly negative pressure chamber to avoid dust spillage.
Automatic feeding, bag breaking, shaking, and waste bag collection to reduce labor intensity.
Optional WIP on-site cleaning, combined with a dual-purpose water and gas gun for easy cleaning.
Equipped with a touch screen and PLC automation control system, it can be used as a standalone or connected device.

Environmental conditions :

To achieve the best performance results, the machine must be operated in an environment with humidity control to ensure there is no moisture in the air.
Maximum air temperature at emptying station ≤24 °C
Maximum relative humidity at filler station ≤50% RH

Bag type & construction:-

The machine is designed to handle pillow style polyethylene or similar bags.

Bag size :

Width measured at seam: (W) 400mm (min) – 500mm (max)
Length: (L) 600mm (min) – 1000mm (max)
Thickness: (T) 100mm (min) – 180mm (max)
Weight: 15-25kg (Dimensional dependent)
Construction: Pillow style
Material: Polyethylene or similar
Thickness: 75-120µm (Nominal)

Technical characteristic :-

High integration	The equipment integrates the functions of automatic stack feeding, bag catching, bag emptying, pallets collection and collection & compaction of empty bags.
Intelligent control	PLC built-in program, one click-start, unpacking speed adjustable, automatic fault alarm.
High emptying rate	Above 99.9% – 99.98% high emptying rate, close to 0. material left in empty bag.
Easy maintenance	The equipment is equipped with access doors to facilitate the maintenance of various components outside the equipment.
No bag debris	Through special design, less bag debris generated during the cutting process, equipped with dust filter box, almost 0 dust into the material
