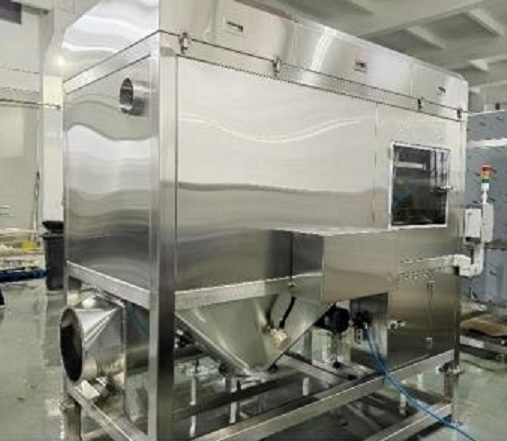

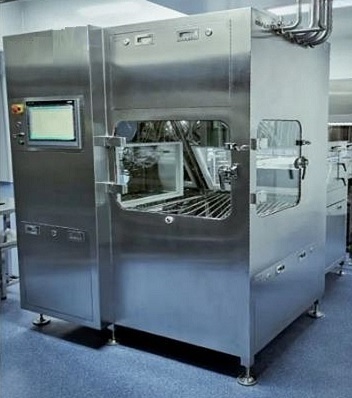

Bag Emptying System (Compact Model)

Compact Bag Emptying system



The Bag Emptying System (Compact Model) is a space-saving, fully enclosed unit designed for dust-free, ergonomic, and efficient emptying of 25–50 kg bags containing powders, granules, or food-grade materials. It is ideal for factories looking for a hygienic, contamination-free method of manual bag unloading while maintaining high material flow rates. Built for batch operations in industries like food, pharmaceuticals, and chemicals, Slice combines hygiene, performance, and safety into one efficient solution.

With a throughput capacity of 150-180 bags per hour, Compact Bag Emptying automates the bag emptying process while ensuring minimal contamination, low dust emission, and maximum recovery of valuable raw materials.

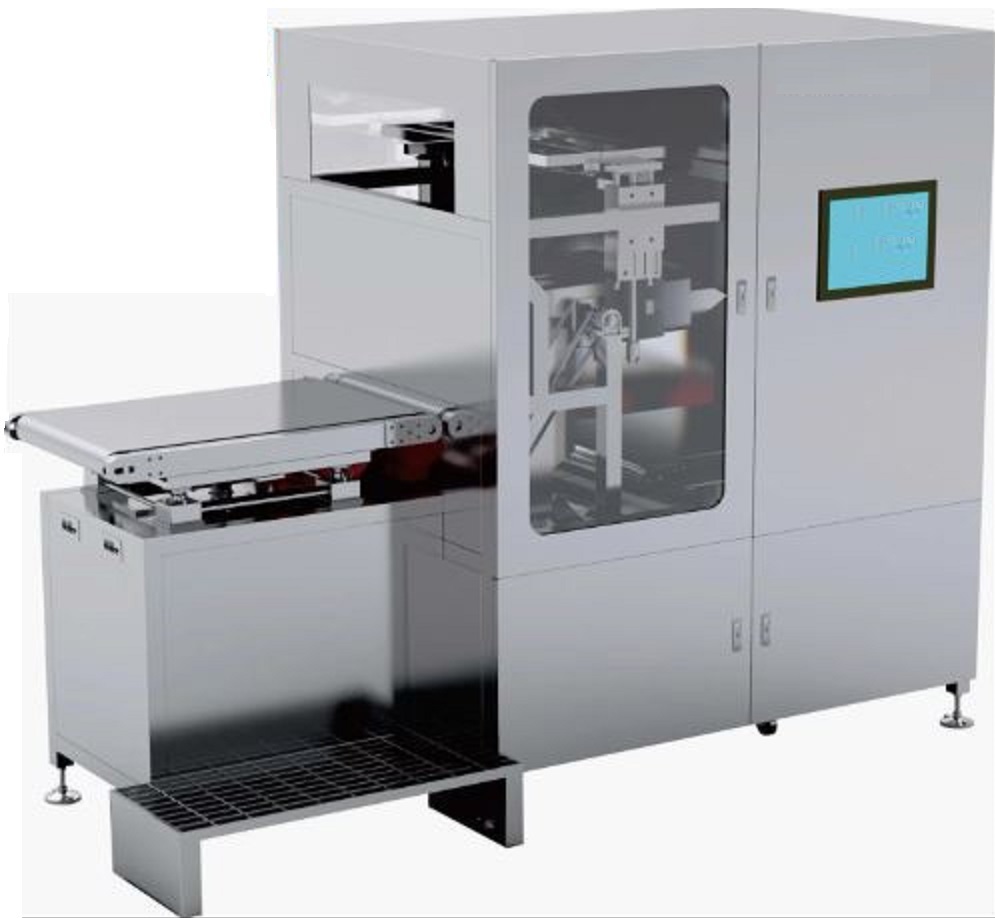

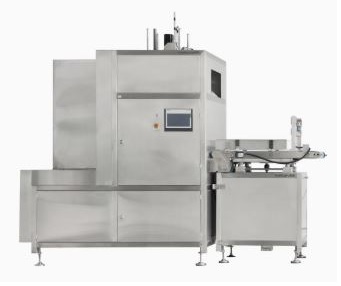

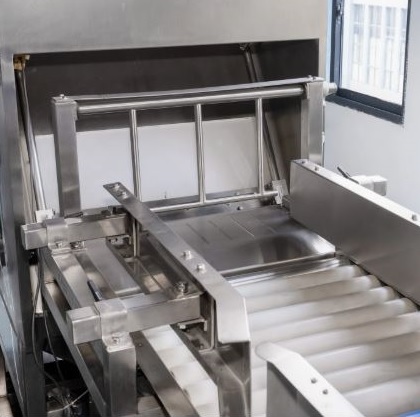

This model features an integrated in feed conveyor, bag cleaning system, inspection window, dust extraction system, vibrating sieve and a robust discharge system—all packaged in a fully enclosed design that’s ideal for indoor installations where cleanliness and safety are critical.

Technical Parameters:-

MODEL

PC-BES-COMPACT

Capacity

120-150 bags/hour (depending on fluidity of material)

Bag Weight

10 – 50kg

Material handled

Powder, Granules, Flakes

Cutting Mechanism

Rotary Blades

Emptying rate

99.9%-99.99% (depending on the fluidity of material)

Overall power

about 3.7KW

Compressed air

about 150L/ min / 0.6mpa

Overall dimensions

L1250 * W850 * H1400 (±50)mm

Weight of equipment

650kgs approx.

Bag Emptying System
Bag emptying machine

Technical characteristic :-

Parameter Details
Capacity 1–3 bags/min (depending on material)
Bag Size 25–50 kg
Construction MS Powder Coated / SS304 / SS316
Hopper Volume 75–200 L
Dust Extraction 75–150 CFM suction port
Discharge Options Screw conveyor / Rotary valve / Pneumatic transfer
Surface Finish GMP, matte, or mirror finish
Optional Safety Interlocked door, filter system

Working Process

  1. Operator places the bag on the perforated grid tray.

  2. The bag is cut and emptied inside the enclosed chamber.

  3. Dust extraction system captures airborne particles.

  4. Material flows into the hopper and exits via the chosen discharge method.

  5. Optional sieve/lump breaker ensures material quality before conveying.

Available Customizations

  • Hopper size & design

  • MOC (MS, SS304, SS316)

  • Surface finish (matte/mirror/GMP)

  • Bag support platform

  • Vibratory discharge system

  • Rotary airlock valve

  • PLC automation

Applications

This system is ideal for handling:

  • APIs & bulk drugs

  • Fine powders (starch, sugar, salt, milk powder)

  • Chemical powders

  • Plastic granules & resins

  • Pigments / detergents

  • Additives & minerals

Industries Served

  • Pharmaceuticals

  • Food Processing

  • Chemical Manufacturing

  • FMCG

  • Plastics & Polymers

  • Paints & Pigments

Advantages:-

  • Sanitary design, mirror polished inside the feeding bin body, with excessive rounded corners and no cleaning dead corners.
  • Breaking and feeding are carried out in a closed, slightly negative pressure chamber to avoid dust spillage.
  • Automatic feeding, bag breaking, shaking, and waste bag collection to reduce labor intensity.
  • Optional WIP on-site cleaning, combined with a dual-purpose water and gas gun for easy cleaning.
  • Equipped with a touch screen and PLC automation control system, it can be used as a standalone or connected device.

Environmental conditions :

  • To achieve the best performance results, the machine must be operated in an environment with humidity control to ensure there is no moisture in the air.
  • Maximum air temperature at emptying station ≤24 °C
  • Maximum relative humidity at filler station ≤50% RH



Bag type & construction:-  The machine is designed to handle pillow style polyethylene or similar bags.

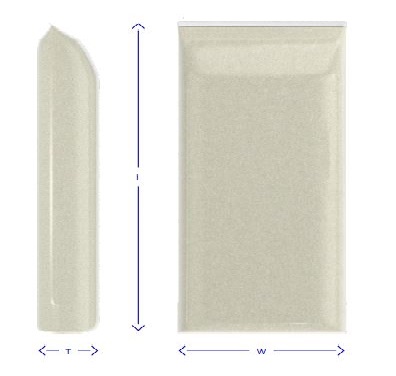

Bag size :-

  • Width measured at seam: (W) 400mm (min) – 500mm (max)
  • Length: (L) 600mm (min) – 1000mm (max)
  • Thickness: (T) 100mm (min) – 180mm (max)
  • Weight: 15-25kg (Dimensional dependent)
  • Construction: Pillow style
  • Material: Polyethylene or similar
  • Thickness: 75-120µm (Nominal)

Why Choose Pneuconveyor Systems?

  • Over 15+ years of expertise in powder handling solutions

  • Customized designs to match factory layout

  • In-house fabrication and full QC inspection

  • Reliable after-sales service and spare support

  • Trusted by top pharma and chemical companies
