Pneumatic conveying system for hygroscopic powder

Pneumatic conveying system for hygroscopic powder

Transferring hygroscopic materials – Pneumatic conveying system for hygroscopic powder – (materials that readily absorb moisture from the air) using a pneumatic transfer system requires special considerations to prevent clumping, degradation, or blockages due to moisture. Here’s how to effectively transfer them:

✅ Recommended System: Vacuum Pneumatic Conveying (Closed Loop)

Pneumatic conveying system for hygroscopic powder –

Why? Vacuum systems minimize air leaks and can maintain controlled environmental conditions, ideal for hygroscopic materials.

🔧 Key Design Considerations

1. Use Dry Air or Nitrogen

   • Problem: Ambient air contains moisture, which can be absorbed by the hygroscopic powder.

   • Solution: Use dehumidified air or nitrogen (inert gas) as the conveying medium to prevent moisture absorption.

2. Closed or Inert Loop System

   • A closed-loop vacuum system prevents external air (and moisture) from entering.

   • Nitrogen blanketing can be used for highly sensitive materials (e.g., in pharma or specialty chemicals).

3. Stainless Steel Construction

   • Use SS304/316 for hygienic and corrosion-resistant surfaces.

4. Minimal Elbows and Bends

   • Reduces the risk of product build-up and sticking in the lines.

5. Proper Filter & Receiver Design

   • Use HEPA filters and ensure the receiver is properly sealed and purged.

6. Use of Air Dryer or Desiccant Dryer

   • Install a drying unit in the compressed air line to remove humidity before conveying.

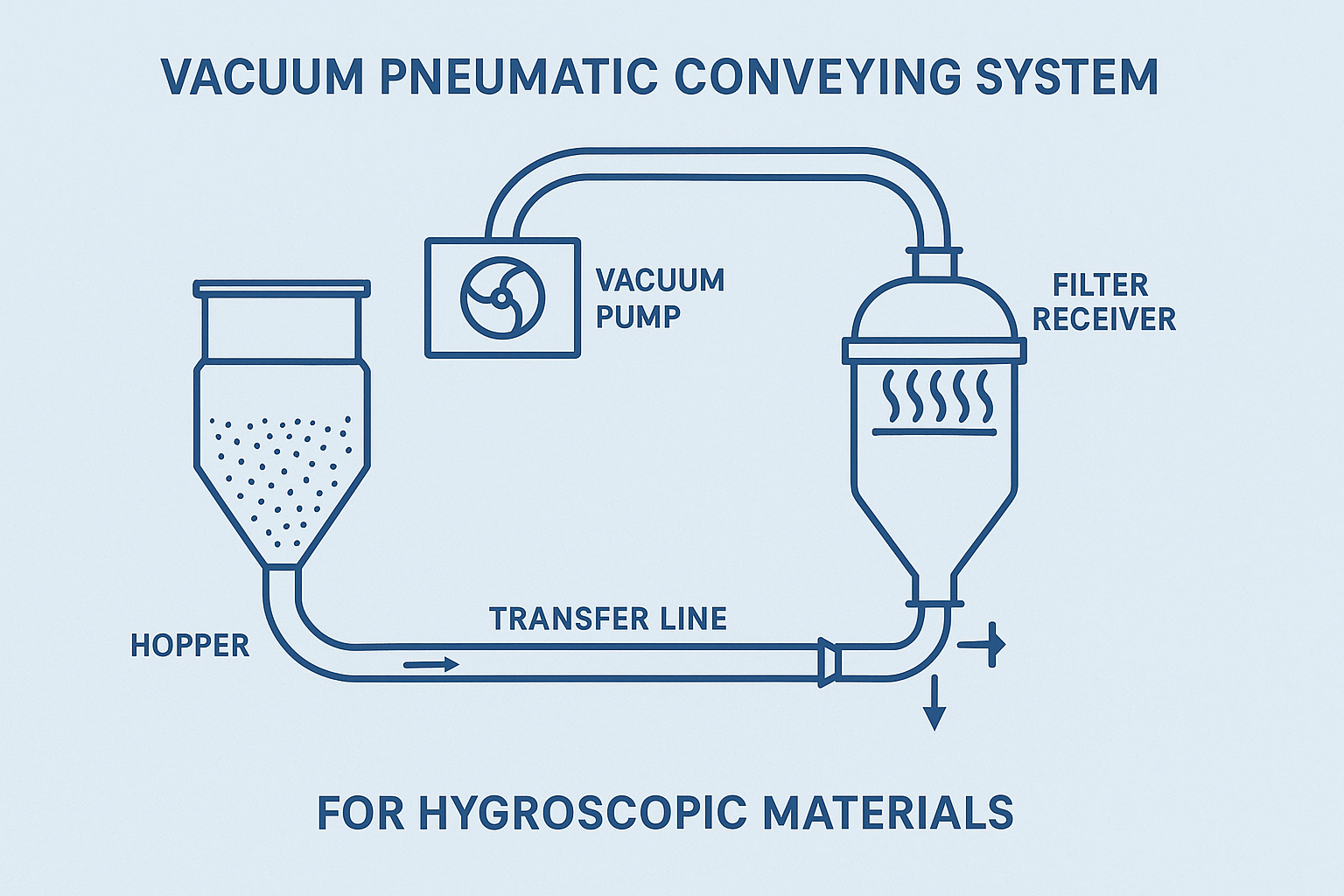

📊 Typical Pneumatic Transfer Setup for Hygroscopic Materials

➤ System Flow:

Hopper → Vacuum Pump → Transfer Line → Filter Receiver → Discharge to Process Equipment

➤ Options for Sensitive Powders:

• Dense Phase Vacuum System (for fragile and moisture-sensitive powders)

• Low Velocity Conveying to reduce attrition

🧪 Example Hygroscopic Materials:

• Citric Acid

• Calcium Chloride

• Sodium Hydroxide

• Sugar

• Ammonium Nitrate

• Pharmaceutical APIs

🧩 Additional Tips:

• Avoid long conveying distances if possible.

• Purge lines after operation to prevent material sticking.

• Monitor dew point of conveying air to ensure it stays below critical limits.
